Imagine opening your power bill and seeing it drop by hundreds of dollars, without changing your lifestyle. You still take […]
The thought of summer may bring dread of those sticky, sweltering days.
However, thanks to technological advancements, you can now ensure that your entire house stays at an ideal temperature—your private oasis amid the scorching weather outdoors.
All you need is a ducted AC.
We must first understand what ducted air conditioning is to fully appreciate its wonderful advantages.
Ducted air conditioning is the modern market’s most effective cooling solution for residences and organisations. Every area in your house or place of business can be cooled by a single system thanks to ducted air conditioners.
You can regulate the temperature of your bedroom to be cool and comfortable for a restful night’s sleep; your living room to be a little balmy for some quality time with family; your children’s room to be cozy for daily activities; and many other areas, all through a single system.

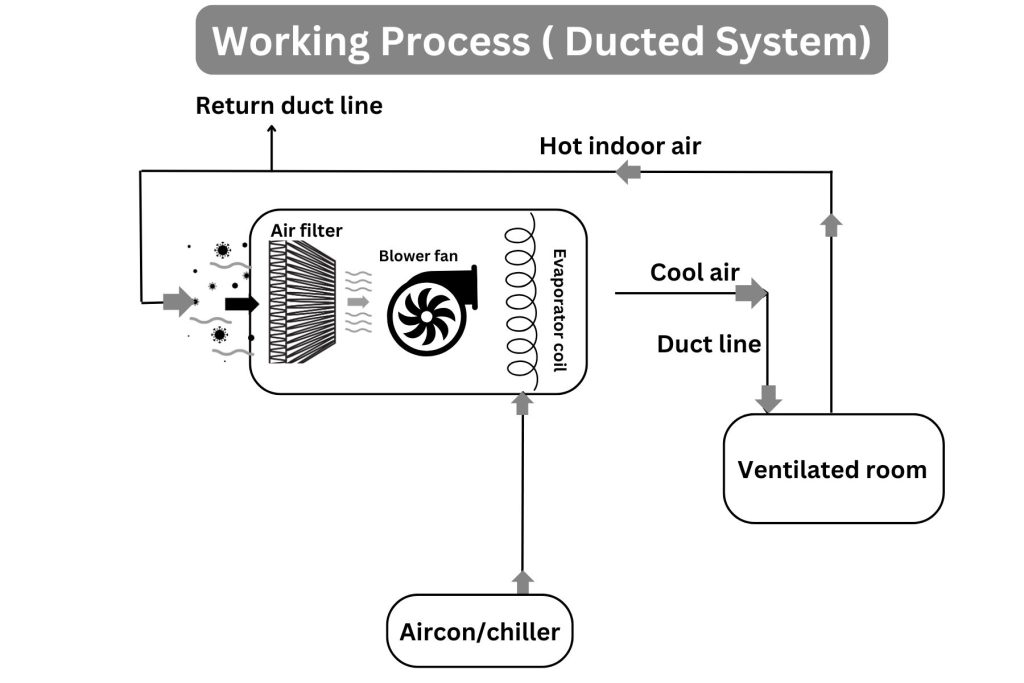

There are essentially two units making up a ducted air conditioner: an indoor unit usually installed in the roof cavity of the house and an outdoor unit.
The two units operate in tandem to complete a refrigeration cycle, and conditioned air is supplied and circulated through a network of ducts and diffuser outlets. Due to its effectiveness and simplicity of use, it’s typically the best system for bigger buildings as well.
This refrigerated cooling system adjusts the temperature of the air using refrigerant. A substance called refrigerant can quickly transform from a vapour to a liquid state, changing temperature in the process.
To heat or cool the air that it draws from the house, the ducted system makes use of this temperature difference.
The following are the three primary elements of refrigerated cooling systems:
Evaporator: Using a blower, warm air is drawn out of your house and transferred through the network of ducts to the interior unit’s evaporator coils.
The heated air is absorbed by the coils’ cold, low-pressure refrigerant, which transforms it into a high-pressure gas by absorbing its heat. Your home’s heated air is blown over the evaporator coils, where it cools and is returned to your home through diffusers or ceiling vents.
Compressor: The exterior unit’s compressor receives high-pressure refrigerant gas. The gas is pressurised by the compressor, condensing it to become liquid.
Condenser: The liquid then goes directly to the condenser coils, which are also found in the exterior unit. To disperse some of the heat generated by the liquid refrigerant inside, a fan blows over the coils.
After going via an expansion valve that further cools and depressurises the liquid, it returns to the evaporator, completing the cycle.
Choosing the ideal air conditioner is never simple, due to the vast array of options available and variables to consider.
However, ducted AC is frequently considered to be the finest option, especially for larger areas. And rightly so, because there are lots of wonderful benefits to choosing ducted air conditioning.
The following benefits may, for instance, justify installing a ducted air conditioning system:
A ducted AC system has the advantage of being virtually undetectable. All that will be visible will be some plain vents on the roof. Planning your interior design is much simpler if you have a ducted system.
You can significantly improve the aesthetics of your house because you won’t have to think about placing a big, bulky split system or wall unit.
A large unit obtrusively mounted on the wall will only obstruct the intricate interior design of your house, making it difficult to maintain a minimalistic design.
So, ducted air conditioners are the best option for anyone who wants their home to look its best.
The degree of control you have with a ducted AC system is one of its many attractive features. Ducted systems cool your entire home consistently, and some systems even allow you to regulate the temperature of each area separately.
If no one is using a zone, you can turn it off or adjust the temperature in other rooms of your home accordingly. For families with members who have different sensitivities to heat, a ducted AC is a fantastic option.
With a ducted system, the desired temperature for each space can be easily adjusted.
Most people are unaware of the fact that ducted air conditioning can be economical and energy efficient.
Yes, the initial cost of installing the system is usually high, but over the course of the air conditioner’s lifespan, this can be compensated for by more effective cooling and lower electricity costs.
Ducted air conditioning is typically much more cost-effective to operate if your area is big enough to require multiple split systems.
Split system ACs have the limitation of only cooling one area at a time. This becomes more difficult when the system is required to cool several rooms at once.
Additionally, it will raise operating expenses, often making ducted systems relatively more affordable to operate. Thus, the installation of a complete ducted unit is usually cheaper and more convenient.
The ability to zone ducted air units is another way that can help you save money. This enables you to turn off any inactive zones, which helps lower costs and reduce energy waste.
If you intend to sell your house in the future, installing a ducted air conditioning system is a wise financial decision.
Even though ducted air conditioning is now considered an affordable option, many people still view it as a luxury. This makes your home more desirable than a similar property without ducted air conditioning.
If you are planning to buy a ducted air conditioning system, we can help make it easier for you to choose from the wide variety of options in the market. Below are some of the products that made it to the top of our lists:
With its low-profile height (360mm) and ultra-compact design, it can easily fit in a contemporary home’s small roof area, so it is suitable for homes with little outdoor space and a small roof. It offers a heating and cooling system for the entire house.
With a cooling capacity of 6 kW and a heating capacity of 7KW, this ducted system is suitable for all spaces 40 sq. m or larger.
It offers a variety of settings, including a night quiet mode that lowers exterior noise levels at night when you are sleeping, and automatically returns to regular operation when you wake up in the morning. It offers R-22 Retrofit Capability too. This enables a convenient and affordable upgrade over a current R22 ducted system.
You will simply have to swap out the indoor and outdoor units while leaving the field piping in place. As a result, an existing system that may be nearing the end of its useful working life can be upgraded in a practical and affordable manner.
Another advantage is that it is specially created and produced according to Australian standards so that it can endure the most extreme summer weather in Australia.
With a compact and slim design, this Fujitsu ducted air conditioner is the best solution for cooling or heating an entire house. It is designed to allow for installation flexibility to provide the best possible fit in your space. Greater installation freedom is provided by using a single power phase.
From noise control to moisture removal and a 24-hour timer, this reverse-cycle air conditioning system offers multiple functions. It also offers easy-to-use wall-mounted LCD controllers that enable you to maximise the performance of your device by controlling all functions conveniently.
With optional zone control, 8 zones can be connected for better temperature control to accommodate individual needs.
Facilitating this feature, the high static of this Fujitsu ducted AC makes it possible to add many air ducts as per requirements for increased outlets. It also enables high energy efficiency to be achieved by several characteristics, including DC fan motors, DC rotary compressors, and programmable systems.
This model from the FDUA series offers a covert and quiet option for large spaces. The product features unparalleled energy efficiency, resulting in lower operating expenses for your house.
This is made possible by an upgraded heat exchanger in the exterior unit, which improves refrigerant dispersion throughout the system, along with the R32 refrigerant and a powerful DC fan motor.
The extremely effective DC fan motor allows the FDUA line to operate at exceptionally low noise levels. Combined with the device’s Silent Mode, this guarantees no disruptions to the room’s ambience and a restful night’s sleep for everyone at home.
This high static ducted air conditioning system allows for more air ducts to be added according to the number of outlets required. Besides all its amazing features, this product also offers increased freedom of installation by using single-phase power.
The PEAD-M71JAA ducted AC from Mitsubishi Electric features a low-profile design, which makes it possible to install it in small ceiling areas. It offers an extensive choice of static pressures with 3 varying fan speeds, making it simple to direct airflow to various rooms in your house.
This unit is perfect for cooling or heating relatively smaller spaces.
Its 7.1 kW cooling capacity and 8.0 kW heating output make it the perfect choice for homes with up to three bedrooms. It comes with the R-32 refrigerant, which effectively transports heat while having less adverse effects on the atmosphere and being more energy efficient.
It comes with a Deluxe PAR wired Controller that is easy to use and has a backlit LCD monitor as standard equipment. You can set as many as eight patterns per day with the PAR Controller to properly regulate temperature and power usage.
Price: About AU$4,580 for the outdoor + indoor unit set (single phase, high static version) from Underwood Air Conditioning.
Why Buy? It uses R32 refrigerant and supports single-phase power (making installs easier in many houses).
Best For: Homes with many duct outlets or longer duct runs, needing strong airflow and heating in colder weather, but restricted to single-phase electricity. Also good where you want quieter operation and flexible control modes.
Designed to offer exceptional energy efficiency, flexibility in design, and R22 retrofit capability, this Inverter Ducted AC is ideal for providing covert air conditioning comfort across your house.
As it has up to 7.1 KW and 7.5 KW cooling and heating capacity, respectively, it may be ideal to regulate the temperature of houses with up to 3 rooms.
Using the next-generation R-32 refrigerant, this variant of ducted AC by Daikin is also quite energy-efficient. Topping it all off, it comes with a wall-mounted, back-lit LCD controller that helps you effectively control all the features and functionalities without any hassle.
This Slim-Line ducted air conditioning system offers unmatched flexibility and design freedom and was created specially to fit installations where ceiling height is limited.
This ducted system overcomes the structural constraints of contemporary apartment development and is ideal for installation underneath the floor or in confined ceiling areas. It’s the industry’s most low-profile design with a height of 245 mm; this product guarantees clearance in most roof spaces.
It provides the comfort of air conditioning very discreetly; only the return air and discharge grilles are visible within the house, aside from the controller.
Having a relatively large cooling and heating capacity of 14 KW and 16 KW, respectively, this ducted system is ideal for cooling as well as heating multiple rooms in a house.
Being aware of its products’ effects on the environment and the climate, Daikin uses the R-32 refrigerant in this model as well, helping you increase energy efficiency while regulating the temperature of your house.

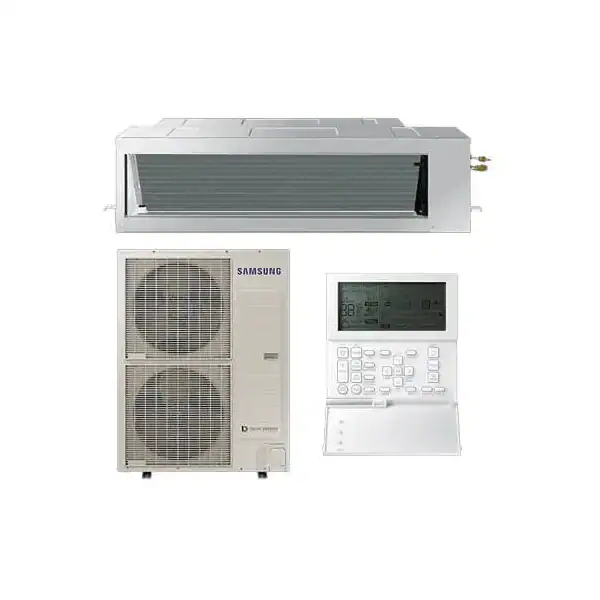

Samsung ducted air conditioners are built with modern living in mind. Their slim design makes them easy to install in homes with tight ceiling spaces, while still offering powerful heating and cooling for the entire house.
The indoor units are quiet, so you barely notice them working, and the only thing visible are the neat ceiling vents. This makes them ideal for homeowners who want comfort without compromising their interior design.
What really sets Samsung apart is its smart technology.
Many models are Wi-Fi enabled, meaning you can control your system from anywhere using the Samsung SmartThings app. Imagine adjusting the temperature of your home before you even leave the office, or switching off zones that aren’t in use to save energy.
The inverter technology also ensures the unit uses only the power it needs, helping to reduce running costs while keeping rooms comfortable all year round.
This LG ducted system combines sleek design with reliable performance. Its compact indoor units are designed to fit easily into Australian homes, even those with limited roof space.
Despite the smaller footprint, they pack a punch with strong airflow, capable of cooling or heating several rooms at once with ease. The vents are discreet, leaving only a minimal presence inside your home, and the system runs quietly in the background.
These systems also give you zoning flexibility, meaning you can cool the living room during the day and switch to the bedrooms at night without wasting energy on unused areas.
On top of that, LG ducted units are built with inverter technology that makes temperature control precise and efficient. The result is year-round comfort that adapts to your lifestyle while keeping power bills lower than traditional systems.

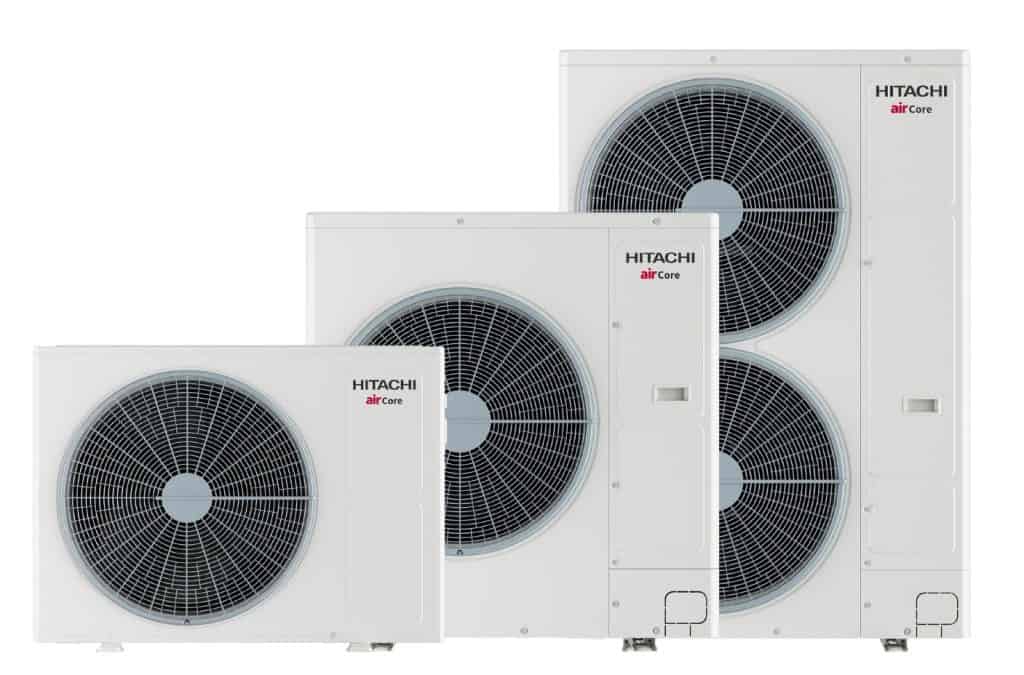

Hitachi’s ducted line in Australia includes the newer airCore 700 residential series plus the RPI/RAD one-to-one ducted models.
The airCore 700 models use the lower-GWP R32 refrigerant and come in mid-static and high-static options so installers can match the unit to complex duct runs.
Capacities span the typical residential band (roughly 5–16 kW), and the technical data show long piping capability and wide ambient working ranges; useful for long-run installs or exposed outdoor units.
Hitachi builds these units with DC-inverter compressors and variable-speed fans (so they modulate output rather than cycling on/off). That means steady temperatures and better part-load efficiency.
Sound and spec numbers vary by model: For example, a listed RPI ducted kit shows indoor sound pressures in the low-40s to high-40s dB(A) depending on fan speed; so “quiet” is model-dependent.
Newer airCore 700 units also carry multi-zone / zoning kit options and manufacturer/reseller warranties listed on the Aussie product docs.

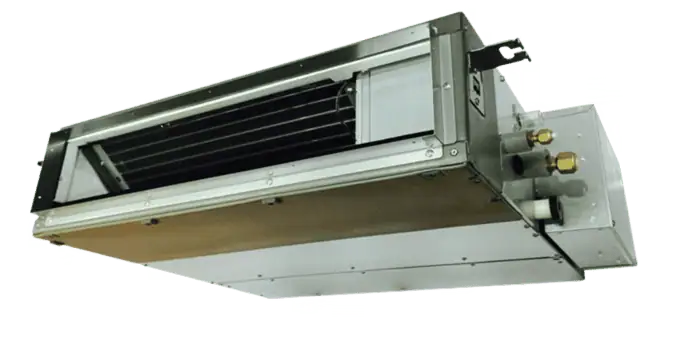

Panasonic markets ultra-slim R32 inverter ducted units in Australia with indoor chassis as low as ~200–250 mm. These are targeted at apartments and homes with narrow ceiling cavities.
Panasonic highlights quiet operation and high-lift condensate pumps for flexible drainage during installs. The slimline models also come with commercial-grade options for adaptive ducted installations.
Panasonic’s pages also detail installation allowances (pipe runs, lift heights) and list controllers and optional accessories. The brand is often chosen where space constraints are the primary concer,n but whole-home ducted comfort is still required.

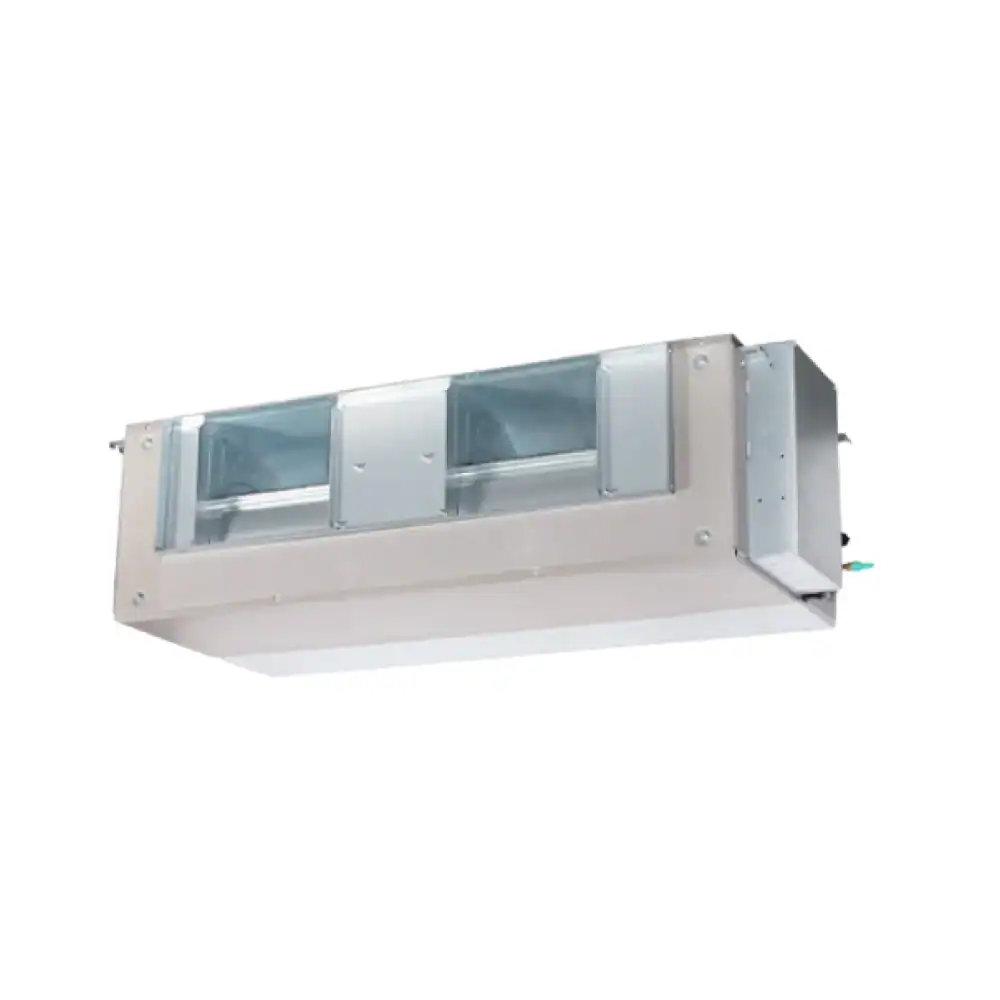

Midea’s 12.5 kW High-Static Pressure (HSP) model is built for homes needing stronger airflow and a larger number of duct outlets; think of a house with many bedrooms or long runs of ductwork.
It uses R32 refrigerant, which offers better environmental performance compared to many older R410A systems. The unit can cool up to about 13 kW and heat slightly above that, so it handles both summer’s peak heat and cold nights well.
Static pressure is good for this class, allowing consistent airflow across many vents without losing power at the farthest outlets.
On the indoor side, its dimensions and weight are substantial; heavy but expected for high-capacity, high-static units, so roof space and mountings need to be planned properly.
Noise levels are moderate when operating at high fan speed, quieter on lower settings. Warranty support comes via Midea Australia, so parts/service access tends to be smoother in most states.
Related Reading
A fully ducted solution is the best way to provide reliable, reasonably priced climate control in your house all year round.
However, there are a few factors to consider to make sure you get a ducted AC system that best suits the needs of your family, the layout of your home, and your budget.
For instance, the following are some of the questions that you should ask whenever considering a ducted air conditioning system:
Roughly speaking, smaller apartments will find that a 4.2kW system is adequate, whereas larger homes and companies may require a system in the range of 10-15kW.
It’s crucial to consider whether a higher initial investment will result in lower operating expenses in the long run.
Both split systems and ducted air conditioning systems make use of refrigerated cooling to regulate the temperature of any space.
The primary difference is that split systems have wall-mounted units directly pumping air into the room, whereas ducted air conditioning uses flexible ducting networks to circulate and disseminate air.
Larger properties with numerous cooling or heating zones typically benefit more from ducted systems. Split systems are typically advised if you only need to cool one or two areas and want to control the temperature separately.
Using ducts to distribute air across the system, ducted air conditioning is a form of central air conditioning. The system can reach various parts of the house, known as zones, with the help of ducts.
Due to their ability to reverse the refrigeration cycle, ducted reverse cycle air conditioners can provide both cooling and heating. Cool air is drawn into the system and turned into heat when the cooling cycle is reversed, turning the condenser into an evaporator. Most contemporary ducted air units are capable of a reverse cycle.
A ducted system’s indoor unit is typically placed in a roof cavity, but if there is enough space, it can also occasionally be installed beneath the floor.
The external unit is set up outside. It discharges warm air from the system and includes a fan. Since the fan tends to be a little loud, it is typically installed outside of any living area.
